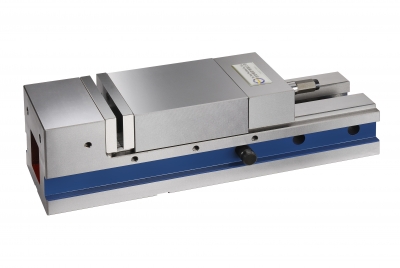

MC HYDRAULIC ANGLE LOCK VISE (Built-In Type)

1. Vise body is made of ductile iron FCD60.

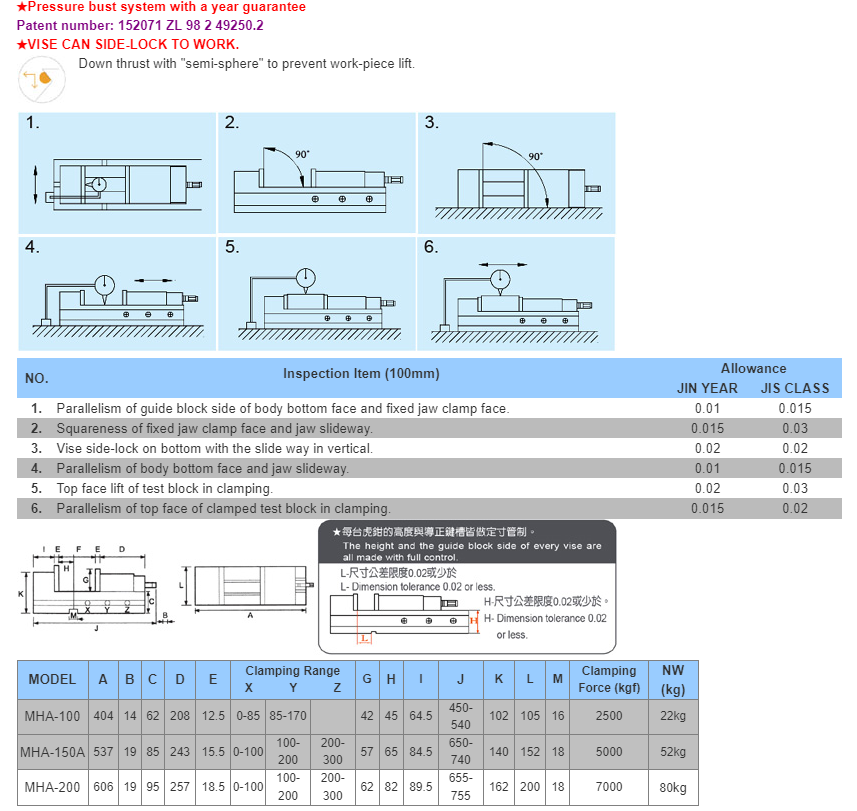

2. Down thrust with "semi-sphere" to prevent work-piece lift.

3. Vise can side-lock to work. (Perpendicular of side lock 90°=0.015/100mm)

4. Vise bed hardened to HRC45° and maintain accuracy for long.

5. Vise slide-chunk can take out, Convenient to clean away chips and inside of vise.

6. Vise bed height-size and guide block side are all made with full control can 2.3 or 4 vises to perform a job at a time is available.
